Descriptions of Sublimation transfer paperCategory
Time：2016-06-14 11:34Source：Guangzhou Elephant Digital Technology Co., Ltd.Read：
Descriptions of Sublimation transfer paper
Width(cm)
Length/m(328ft)
M2/roll
G/m2
Package size(cm)
Each Carton Contains
GW(kg)
30(11.8”)
100
30
100
64*32*32
4
12
42(16.5”)
100
42
100
46*32*32
4
16
52(20.47”)
100
52
100
56*32*32
4
22
61(24”)
100
61
100
64*32*16
2
11.7
80(31.5”)
100
80
100
84*32*16
2
14
91.4(36”)
100
91.4
100
94*32*16
2
20.85
108(42.5”)
100
108
100
112*32*16
2
24.3
111.8(44”)
100
111.8
100
115.8*16*16
1
13
130(51.2”)
100
130
100
134*16*16
1
15
140(55.1”)
100
140
100
144*16*16
1
16.15
150(59”)
100
150
100
154*16*16
1
17
160(63”)
100
160
100
164*16*16
1
18.05
Function: for light polyester fabric, ceramics, glass, iphone cases etc.
Descriptions:
High quality sublimation paper, which is specially developed for high-speed inkjet digital sublimation transfer printing.It is suitable for high speed inkjet printing and after printing, the ink dry quickly, it can have a long life of storage after printing and embody the perfect line and print details, the transfer rate could reach 95%. High quality base paper and coating with excellent uniformity and smoothness.
Features:
1, 100% sustainable wood pulp, 100% renewable
2, 100% of fiber bleaching, not add brightener, do not contain chlorine, without harmful gas emissions in the process of transfer printing
3, mixed double coating structure, support amount 400% saturated print ink film crack, penetration, smoothness good paper, printed on the back of high precision, distinct, wide color gamut
4, different surface tension of the ink good compatibility, high tolerance and support industrial-grade unattended operation
5, the whole picture of error < 2%, drum section and tidy, precision feed, back on both sides of the wet process technology not warp, wet deformation of high strength, large amount of ink high-speed printing deformation, low nozzle without scratches
6, high ink absorption ability, quick drying, reduce passive drying, effectively improve the production efficiency, color paper mobile no more pollution, reduce rejection rate
7, high thermal stability, deformation, not wrinkle, paper, high strength, not easy to break
8, ink with high efficiency and high transfer rate
9, the difference of color paper drying time not off color, the color performance is stable
10, online control and evaluation system of perfect, stable quality, service, effective coverage radius

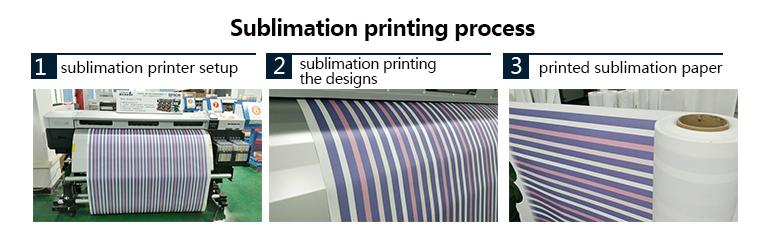

Applications: 1. what is the sublimation transfer printing:
Heat sublimation transfer printing is using sublimation ink, sublimation printer to print image such as portrait, landscape, text etc by reversal way on the sublimation transfer paper, and then heated to a temperature of about 200 ℃ with heat transfer equipment, sublimation ink which is on paper will be in the form of gasification into substrates, so as to put the paper on the vivid images to transfer to textiles, porcelain, porcelain plate, metal material of a new technology.
2. Printers used:
Normal inkjet printers, sublimation inkjet printer.
Wide inkjet printers: Epson,Roland, Mutoh, Bncad, Mimaki etc...
sublimation paper Specification:
size: A4 / A3, A2, 21 CM * 100 meters, 42 CM * 100 meters, 61 CM * 100 meters, 100 meters of 91.4 CM *, 111.8 CM * 100 meters, 132 CM * 100 meters, 160 CM * 100 meters etc.
3. special sublimation ink:
Must use sublimation ink, this kind of ink made of disperse dye inks, it will produce sublimation and substrates with dyeing after high temperature, good quality ink is no plug nozzle, the sublimation ink color is vivid, good stability.
4. adjust the appropriate concentration of color:
Adjust the concentration of the color in the computer, avoid the ink is too dry, need to check the effect of transfer after adjustment.

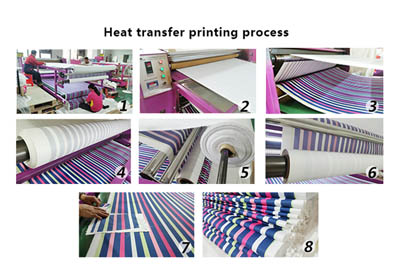

5. adjust appropriate heat pressing temperature and time:
Heat transfer in the temperature range of about 180-180 ℃, time of about 10 to 30 seconds, you should try small sample printing before the formal mass transfer.
6. whenheattransfer, hot surface shouldbeadhesivetofabrictightly:
During heat transfer,the hot surface, sublimation transfer paper, substrates must be close to the surface, it can be no gap, otherwise it can appear fuzzy phenomenon.
